Demo of pipeline

[ ]:

%%!

ROOT_DIR="D:\mzb-workflow"
MODEL_C="convnext-small-v0" # classification model
MODEL_S="mit-b2-v0" # skeletonization model

## SEGMENTATION ##
python ${ROOT_DIR}/scripts/image_parsing/main_raw_to_clips.py \
    --input_dir=${ROOT_DIR}/data/mzb_example_data/raw_img/ \
    --output_dir=${ROOT_DIR}/data/mzb_example_data/derived/blobs/ \
    --save_full_mask_dir=${ROOT_DIR}/data/mzb_example_data/derived/full_image_masks \
    --config_file=${ROOT_DIR}/configs/mzb_example_config.yaml \
    -v

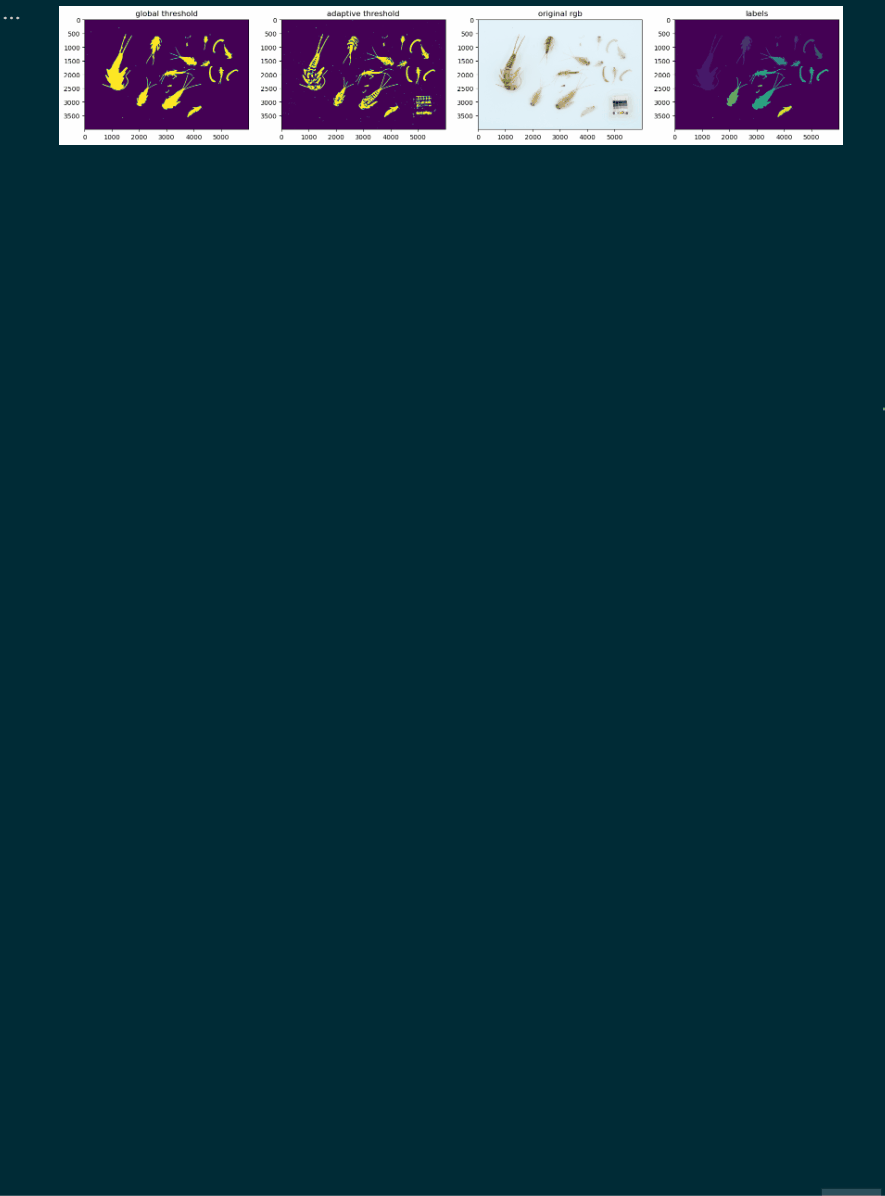

The first module is segmentation: it extracts clips of single organisms from images with lots of organisms.

Segmentation

[ ]:

%%!

## CLASSIFICATION ##
python ${ROOT_DIR}/scripts/classification/main_classification_inference.py \
    --input_dir=${ROOT_DIR}/data/mzb_example_data/training_dataset/trn_set/ \
    --input_model=${ROOT_DIR}/models/mzb-classification-models/${MODEL_C} \
    --taxonomy_file=${ROOT_DIR}/data/mzb_example_data/MZB_taxonomy.csv \
    --output_dir=${ROOT_DIR}/results/mzb_example/classification/trn_set/ \
    --config_file=${ROOT_DIR}/configs/mzb_example_config.yaml \
    -v

Once we have single organisms’ clips we use the classification module to assign a taxonomic category to each clip. It will return a table with each class’s prediction probability for each clip.

file

pred

acari

coleoptera

diptera

ephemeroptera

errors

oligochaeta

plecoptera

trichoptera


ephemeroptera

1.49E-03

2.62E-04

3.19E-03

8.47E-01

3.02E-04

1.25E-04

1.44E-01

2.84E-03


diptera

5.37E-07

1.89E-06

9.99E-01

2.83E-06

6.40E-07

1.43E-06

5.21E-04

3.97E-06


ephemeroptera

1.41E-04

3.47E-04

1.17E-03

9.55E-01

2.81E-04

7.69E-05

4.26E-02

4.65E-04


plecoptera

5.41E-05

3.73E-05

5.87E-05

3.55E-02

9.08E-05

1.36E-05

9.64E-01

1.76E-04


trichoptera

3.30E-03

5.92E-04

1.96E-02

1.56E-02

3.12E-04

9.78E-05

3.91E-02

9.21E-01


plecoptera

6.39E-05

1.64E-06

1.98E-03

1.52E-02

1.85E-05

4.65E-05

9.82E-01

5.14E-04


diptera

7.04E-07

4.01E-07

1.00E+00

1.19E-04

7.87E-07

2.43E-05

1.73E-04

6.49E-06


diptera

5.31E-05

3.35E-05

9.99E-01

6.63E-05

7.87E-05

1.97E-04

1.02E-04

6.05E-04


acari

8.02E-01

9.16E-03

1.84E-02

3.27E-02

6.06E-03

1.95E-03

6.07E-02

6.88E-02


ephemeroptera

2.08E-05

1.60E-06

1.94E-04

1.00E+00

8.39E-06

1.17E-06

2.01E-04

2.00E-05


coleoptera

9.10E-03

9.53E-01

1.13E-02

8.65E-03

3.71E-03

2.78E-04

9.37E-03

4.51E-03


diptera

2.44E-04

2.49E-04

9.77E-01

1.33E-02

4.58E-04

3.94E-04

7.87E-03

2.68E-04


ephemeroptera

8.35E-05

7.99E-05

8.81E-04

9.85E-01

1.74E-04

7.02E-05

1.37E-02

2.71E-04


plecoptera

1.27E-04

3.35E-04

1.40E-04

3.18E-02

2.17E-04

8.59E-05

9.67E-01

1.94E-04


[ ]:

%%!

## UNSUPERVISED SKELETONIZATION ##
python ${ROOT_DIR}/scripts/skeletons/main_unsupervised_skeleton_estimation.py \
    --input_dir=${ROOT_DIR}/data/mzb_example_data/derived/blobs/ \
    --output_dir=${ROOT_DIR}/results/mzb_example/skeletons/unsupervised_skeletons/ \
    --save_masks=${ROOT_DIR}/data/mzb_example_data/derived/skeletons/unsupervised_skeletons/ \
    --config_file=${ROOT_DIR}/configs/mzb_example_config.yaml \
    --list_of_files=None \
    -v

From organisms’ clips, we can also derive body length with the unsupervised skeletonization module…




[ ]:

%%!

## SUPERVISED SKELETONIZATION ##
python ${ROOT_DIR}/scripts/skeletons/main_supervised_skeleton_inference.py \
    --input_dir=${ROOT_DIR}/data/mzb_example_data/derived/blobs/ \
    --input_type="external" \
    --input_model=${ROOT_DIR}/models/mzb-skeleton-models/${MODEL_S} \
    --output_dir=${ROOT_DIR}/results/mzb_example/skeletons/supervised_skeletons/ \
    --save_masks=${ROOT_DIR}/data/mzb_example_data/derived/skeletons/supervised_skeletons/ \
    --config_file=${ROOT_DIR}/configs/mzb_example_config.yaml \
    -v

…or both body length and head width with the supervised skeletonization module.

…coming soon…
